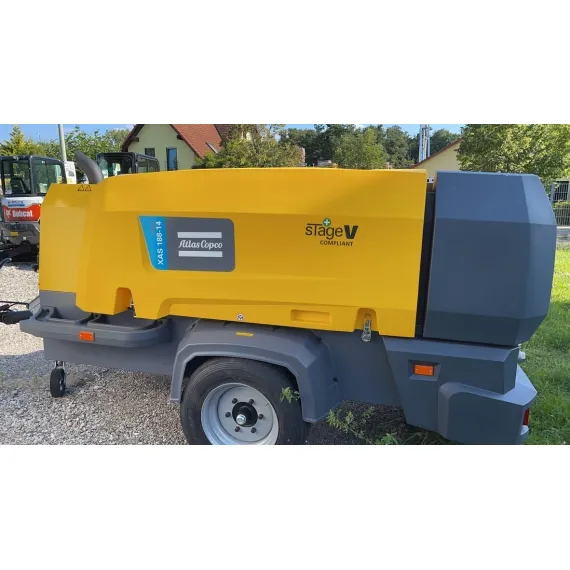

Atlas Copco Xas 188 - 14

MM-2477
Updated on
Brand
Atlas Copco
Year of construction
2026
Condition
New
Operating hours
0
Working pressure
14 cash
Volume flow FAD (max.)
11.4 m³/min
Engine power
kW
Drive type
Diesel

The Atlas Copco XAS 188-14 is ideal for a wide range of applications on construction sites and in industry.

City: DE, Hanhofen

Active since

Seller information
GSK Baumaschinen
Description

Here are the key technical specifications of the portable construction compressor:

  • Air flow rate: 10.1–11.4 m³/min
  • Operating pressure: 7.0–14.0 bar
  • Pressure range: 5.0–14.0 bar
  • Compressor oil capacity: 26.5 L
  • Compressed air connections: 3x G 3/4, 1x G 1 1/2
  • Sound emission: 99 dB(A)

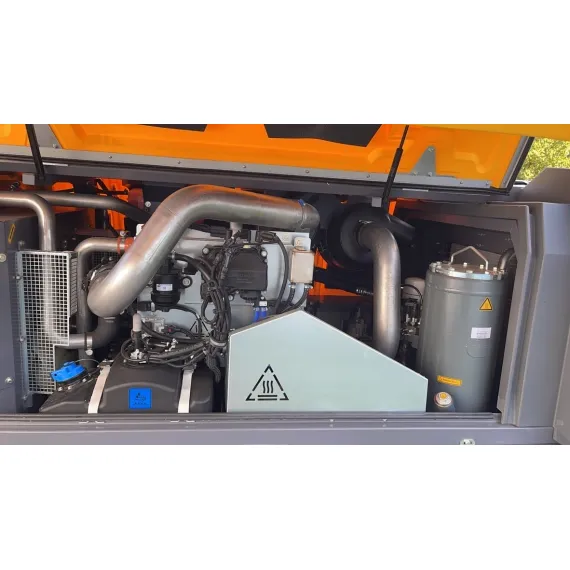

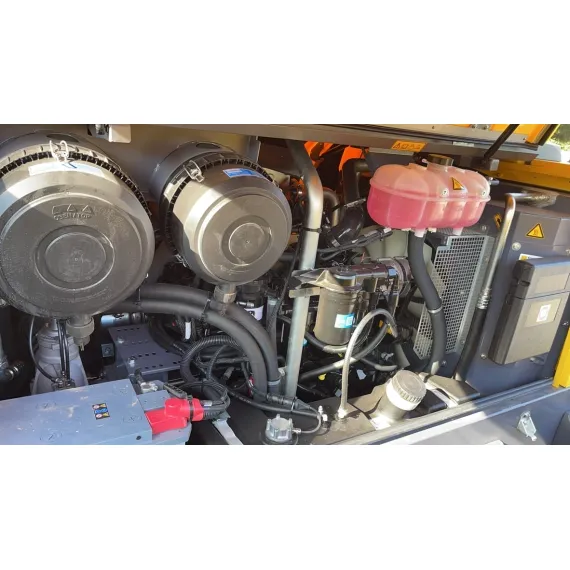

  • Drive motor: John Deere Type 4045HI551, rated power 104 kW, speed 1950 - 2200 rpm
  • Operating weight (with full fuel tank): 2340 kg
  • Dimensions: Transport length approx. 3.18 m, width approx. 1.585 m (based on model variants)
  • Additional features: Braked and height-adjustable chassis, NK-WA-PD fine filter ZTV-SIB, bypass system, Euro 5 emissions standard, ECO mode for up to 50% lower fuel consumption at idle

This diesel compressor is designed as a single-stage, oil-injected screw compressor and delivers a free air delivery of up to 189 cfm at 100 psi, making it a versatile portable compressor.

Features
Condition
New
Operating hours
0
Working pressure
cash
Volume flow FAD (max.)
11.4 m³/min
Drive type
Diesel
