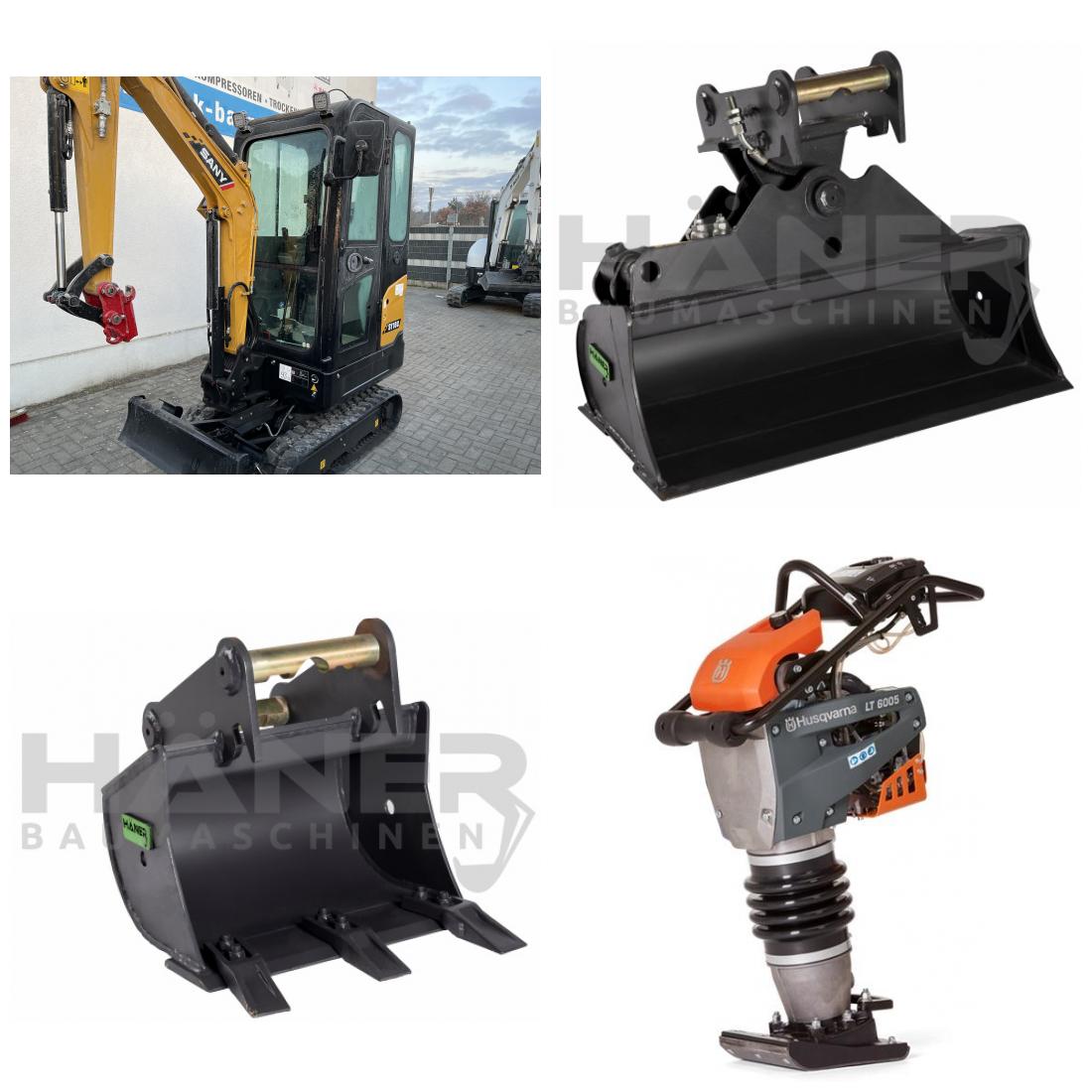

SANY SY18C Mini Excavator – Complete Set with Hydraulic Attachments and Compactor

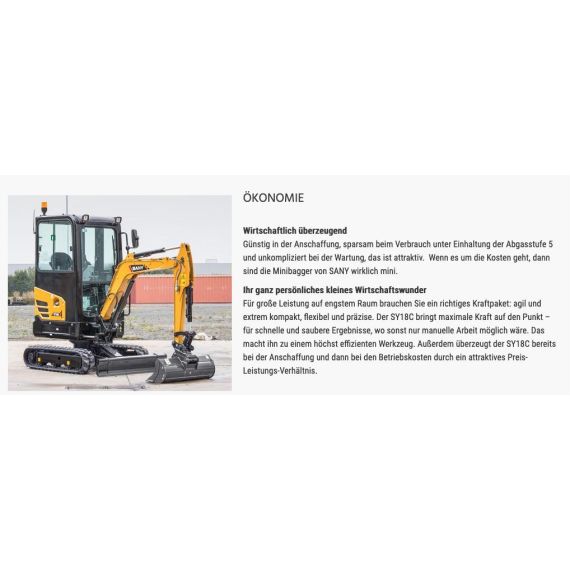

GSK Construction Equipment’s product lineup includes the SANY SY18C mini excavator as a complete package with two high-quality interchangeable attachments and a Husqvarna compactor. The SY18C is a 1.8-t-class mini excavator equipped with the robust Yanmar 3TNV80F diesel engine and, despite its compact dimensions, offers a full range of standard features for professional excavation work. The set is offered by GSK Construction Equipment and is aimed at construction companies, civil engineering firms, and rental companies that need flexible equipment for tight job sites.
Technical Specifications of the SANY SY18C and Accessories
The mini excavator and its attachments are designed for maximum efficiency in civil engineering work:
- Manufacturer / Model: SANY SY18C (Engine: Yanmar 3TNV80F)
- Drive / Engine Power: Diesel, 14.6 kW at 2,400 rpm
- Net weight: 1,850 kg (operating weight 1,750 kg)
- Bucket capacity (standard bucket): 0.04 m³
- Maximum digging depth: 2,360 mm
- Maximum reach: 4,000 mm
- Minimum swing radius: 1,705 mm
- Bucket breakout force (ISO): 15.2 kN
- Arm tear-out force (ISO): 9.2 kN
- Overall length: 3,640 mm

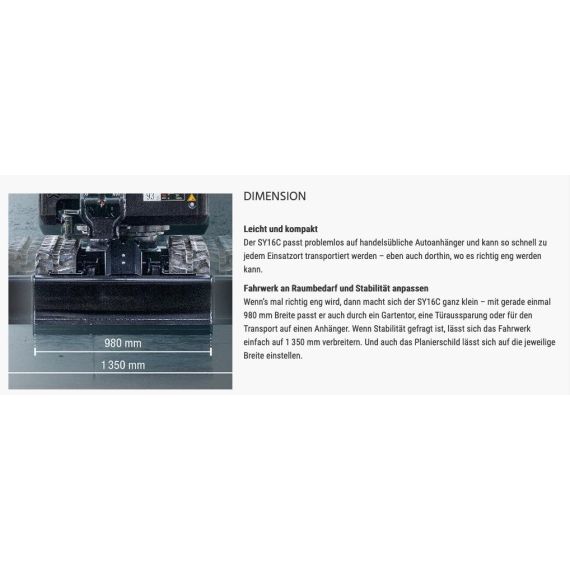

- Overall width: 980 / 1,350 mm (width-adjustable undercarriage)
- Overall height: 2,420 mm
- Hydraulic system: Load sensing, max. oil flow 72 l/min
Interchangeable attachments (set):

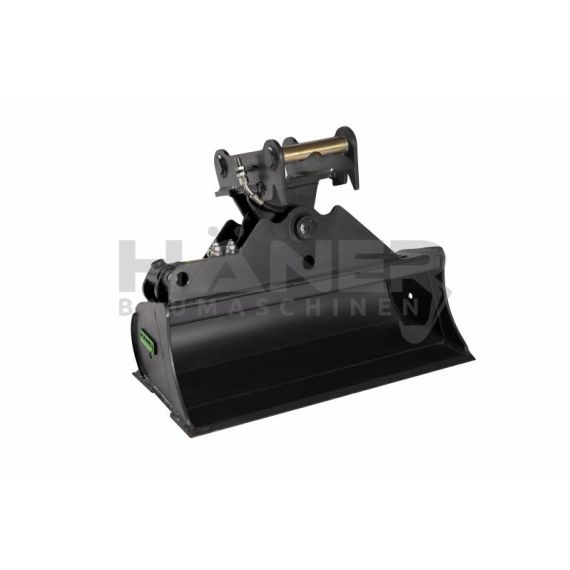

- MS01 hydraulic trenching bucket (800 mm): Working width 800 mm, weight 83 kg, volume 50 L (SAE), swing angle 2×45°, made of high-strength S355J+2N tempered steel, for excavators weighing 1.2–1.9 t

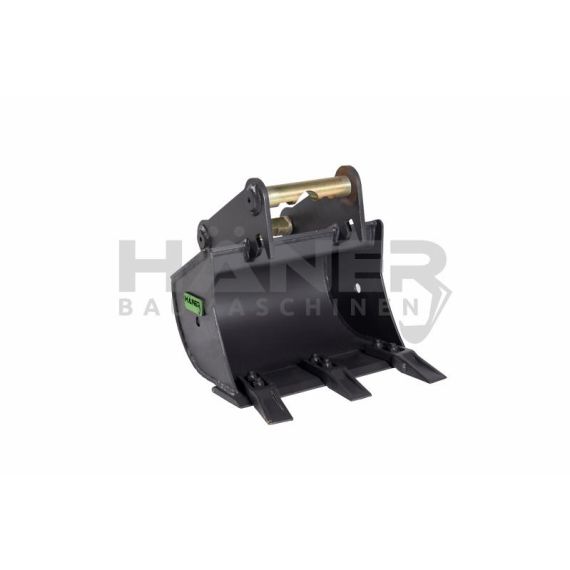

- Backhoe Bucket MS01 (300 mm): Working width 300 mm, weight 30 kg, volume 18 L (SAE), depth 318 mm, with bolted CAT tooth system (3 pieces), made of S355J2+N and HB500, for excavator types 0.5–1.2 t

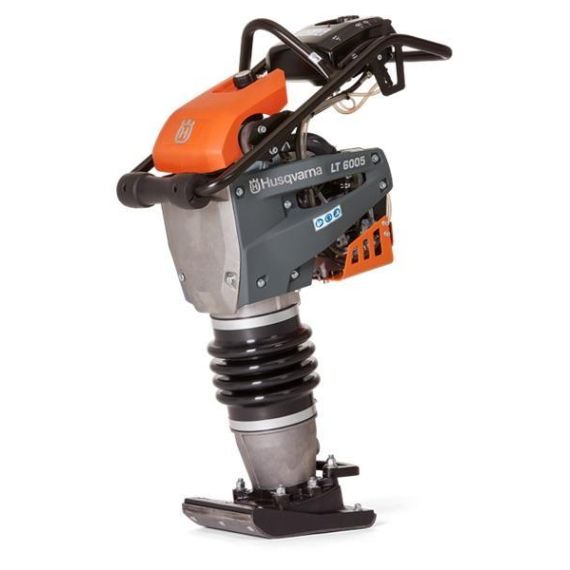

- Husqvarna LT 6005 compactor: Honda GXR120 four-stroke air-cooled engine, 2.7 kW, weight 69 kg, compaction speed 16.5 m/min, sound power level 106 dB(A)
What types of work is the SANY SY18C mini excavator with interchangeable attachments used for?
The SY18C is a versatile machine for civil engineering and tight job sites. The combination of excavation tools and a compaction rammer enables a wide range of applications:
- Excavation and pipe laying: With a digging depth of up to 2,360 mm and flexible reach, it is ideal for sewer work and pipe trenches
- Utility Trenching: The small turning circle (swivel radius 1,705 mm) allows work in tight spaces such as around columns, pipes, and basement walls
- Trench clearing: The 800-mm trench-clearing bucket with swivel function simplifies the clean clearing and leveling of trench walls
- Soil compaction: The Husqvarna compactor allows for direct compaction of fill material in trenches without the need for a separate compaction machine
- Working on tight and urban job sites: With a width-adjustable undercarriage and dimensions ranging from 980 to 1,350 mm in width, the SY18C fits through narrow passageways and gates
Which companies might be interested in the SANY SY18C?
This complete set is designed for various target groups in the construction industry:
- Civil engineering firms: Professional excavation and earthwork with a full range of equipment for pipeline and sewer construction sites
- Pipeline and utility construction: Specialized work in confined spaces with interchangeable attachments for different soil types
- Rental companies: Complete packages for customer projects with multiple functions in a single machine
- Municipal construction companies and engineering firms: Work on cramped inner-city construction sites with minimal turning radii
- Specialized civil engineering contractors: Projects requiring flexible tool changes and high precision
Advantages of the SANY SY18C Complete Set

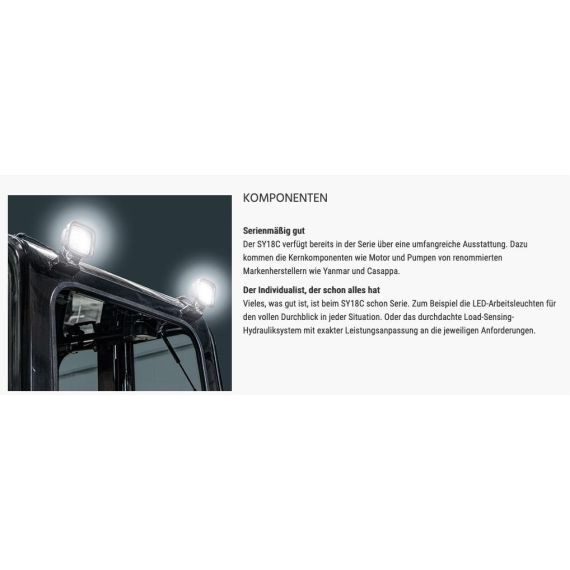

- Full standard equipment: LED work lights, width-adjustable undercarriage, proportional joystick control, load-sensing hydraulics, and safety valves are included as standard
- Flexible interchangeable attachments: With the MS01 mount, trenching buckets and backhoe buckets can be quickly changed—ideal for varying soil conditions and job requirements
- Compact dimensions with high digging depth: Despite a curb weight of 1.85 t, the SY18C achieves a digging depth of 2,360 mm and a reach of 4,000 mm
- Robust and low-maintenance: A Yanmar diesel engine with automatic speed control, internally routed hydraulic hoses, and grease fittings on all moving parts reduce downtime
- Integrated compaction: The Husqvarna LT 6005 compactor with a Honda engine enables direct compaction of excavated material without external equipment
- High-quality tools: Trenching buckets and backhoe buckets made of heat-treated steel with HB cutting edges (HB400–HB500) for long service life and low maintenance costs
Scope of delivery

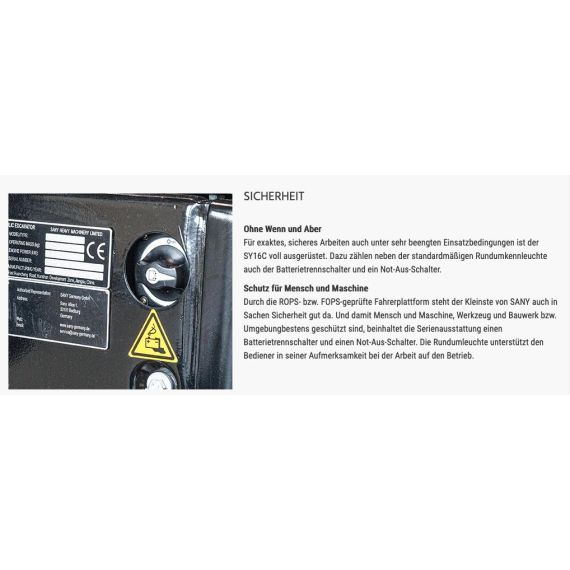

- 1× SANY SY18C mini excavator with standard equipment (LED work lights, rotating beacon, width-adjustable undercarriage, safety valves, battery disconnect switch, cylinder protection)
- 1× MS01 800 mm hydraulic trenching bucket
- 1× MS01 backhoe bucket, 300 mm, with bolted CAT tooth system
- 1× Husqvarna LT 6005 compactor with Honda GXR120 engine
Financing through GSK Baumaschinen
GSK Baumaschinen offers flexible financing options, rent-to-own, and leasing models for this complete set. The SANY SY18C with interchangeable attachments and compactor is a long-term investment for professional civil engineering work—we support you with customized financing solutions. Contact us—we’d be happy to provide you with a personalized quote.
