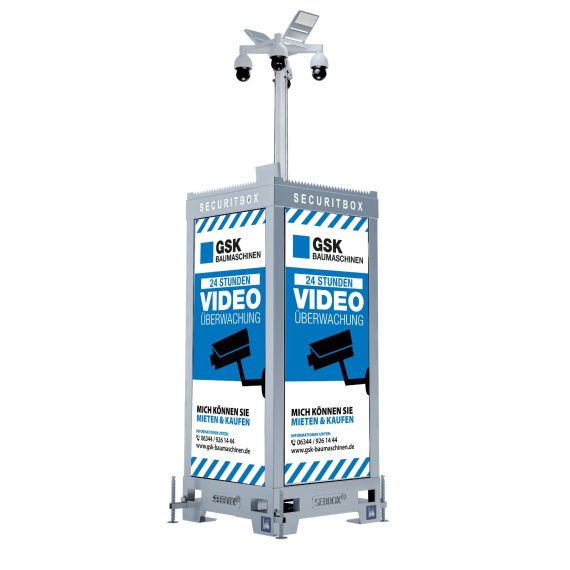

GSK Sonderbau Video Tower — Mobile Surveillance Solution for Construction Sites

The GSK Sonderbau Video Tower is a mobile construction site surveillance solution that combines security and control on construction projects. The unit combines a telescopic mast (up to 6 meters), professional IP cameras, an alarm system, and electrical components in a mobile, 100% hot-dip galvanized enclosure. GSK Baumaschinen offers this custom-built unit as a fully equipped solution, including installation and commissioning.

Technical Specifications of the GSK Custom-Built Video Tower

The video tower is equipped with the following core components:

  • Manufacturer / Model: GSK Sonderbau SB6 Professional Securitbox
  • Frame: 100% hot-dip galvanized; side walls and doors powder-coated

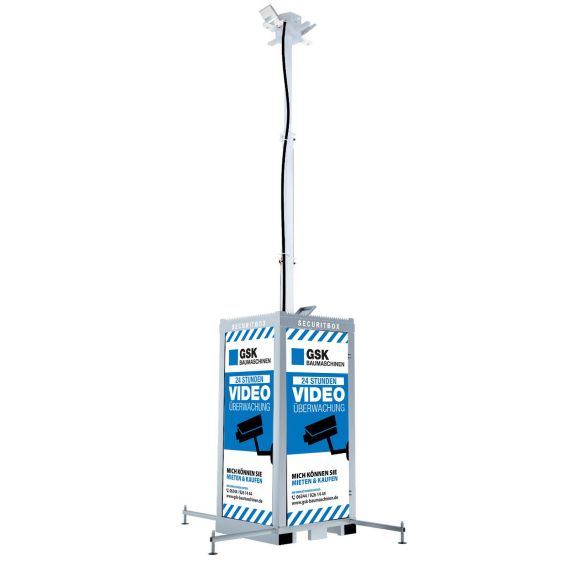

  • Telescopic mast: up to 6 meters in height
  • Doors and roof: Lockable
  • Stabilizers: 4 adjustable stabilizer feet
  • Electrical cabinet: Type 693 (W/H/D: 60/90/30 cm) with fan, DIN rail, 5-outlet power strip, CEE 16A plug/outlet
  • Power supply: 220 Ah battery (green), Victron 30 A charger, 375 VA inverter
  • Communication: Teltonica router with 2 SIM cards, circular antenna with magnetic mount, twilight sensor

Surveillance equipment for the GSK custom-built video tower

The Large surveillance package includes professional camera systems and storage:

  • 2 × PTZ cameras: D-545-PT32I IP Professional 4 MP with 32× zoom and 150 m Starlight night vision
  • 4 × Eyeball cameras: IP-E383-28D3 IP Professional 8 MP, 2.8 mm lens, 101° field of view
  • Camera mounts: 4 × ceiling-mount adapters, 4 × G1 1/2" threaded adapters for PTZ
  • Recording: 8-channel NVR, WDP4 TB storage medium
  • Alarm system: Alarm control panel with 2 door/window sensors, control panel, siren (120 dB)
  • Lighting: 2 × 50-watt LED floodlights per tower
  • Installation: All wiring, network cables, power cables, small parts, switches, and fuses, including a flat-rate fee for installation and commissioning

For which applications is the GSK Sonderbau video tower used?

Mobile video surveillance is typically used in the following applications:

  • Construction site monitoring: Monitoring and documenting construction progress on small and large construction sites
  • Securing material storage areas: Protection against theft and unauthorized access on construction sites and storage areas
  • Night surveillance: Use of Starlight night vision cameras for round-the-clock security
  • Project monitoring: Recording and documentation for project management and insurance claims
  • Event and venue security: Temporary surveillance for short-term projects and construction sites

Which companies might be interested in the GSK Sonderbau video tower?

The video tower is designed for professional users in the construction and security sectors:

  • Construction companies: Protection of construction sites and project documentation during the construction phase
  • Rental companies: Mobile surveillance solutions as a rental service for customers
  • Security services: Professional surveillance with high-quality IP cameras and alarm systems
  • Facility management: Temporary security for warehouses, construction sites, and company premises
  • Logistics and warehousing companies: Round-the-clock monitoring with night vision and motion detection

Advantages of the GSK Sonderbau Video Tower

  • Mobile flexibility: Mobile system with 4 adjustable stabilizer legs for quick relocation on the construction site
  • Height adjustability: Telescopic mast up to 6 meters allows for optimal camera positioning and field-of-view coverage
  • Weather protection: 100% hot-dip galvanized, powder-coated steel frame with lockable doors and roof
  • High-Resolution Cameras: Combination of PTZ cameras (4 MP, 32× zoom) and eyeball cameras (8 MP) for comprehensive coverage
  • Night vision capability: 150 m Starlight night vision for 24/7 monitoring even in the dark
  • Integrated alarm system: Tamper sensors, siren (120 dB), and control panel for active security
  • Autonomous power supply: 220 Ah battery with Victron charger and inverter for off-grid operation
  • Communication: Teltonica router with 2 SIM slots for redundant cellular connectivity and remote access
  • Flat-rate installation: Complete assembly and commissioning by GSK Baumaschinen included
  • Customizability: Equipment can be individually tailored to your needs

Scope of Delivery

  • GSK Sonderbau SB6 Securitbox with steel frame, hot-dip galvanized
  • Telescopic mast up to 6 meters
  • 2 lockable doors, lockable roof
  • 4 adjustable stabilizer feet
  • Mast head insert and manual cable winch
  • Cable conduit with wiring
  • Type 693 electrical cabinet with fan, DIN rail, 5-outlet power strip, CEE 16A plug/outlet
  • 220 Ah battery (green), Victron 30 A charger, 375 VA inverter
  • Teltonica router with 2 SIM slots, circular antenna (magnetic mount), twilight sensor
  • 2 × D-545-PT32I PTZ cameras (4 MP, 32× zoom, 150 m Starlight)
  • 4 × IP-E383-28D3 Eyeball cameras (8 MP, 2.8 mm, 101° field of view)
  • 8-channel NVR and WDP4 TB storage device
  • Alarm control panel with 2 door/window sensors, control panel, siren (120 dB)
  • Camera mounts (ceiling, PTZ adapter)
  • 2 × 50-watt LED floodlights per tower
  • All network cables, power cables, wiring, small parts, switches, and fuses
  • Flat-rate installation, setup, and commissioning

Financing through GSK Baumaschinen

GSK Baumaschinen offers flexible financing solutions, rent-to-own, and leasing options for the video tower and other equipment. Depending on the project, the system can be rented or financed on a short- or long-term basis. Contact us – w

Features
Condition
New
Drive type
Network
Item number
Vi-GSK-Sond
Model
SB6
Voltage (V)
16 V
